| Type de paiement: | L/C,T/T,D/P,Paypal |
| Incoterm: | FOB,CFR,CIF,EXW,FAS,FCA,CPT,CIP,DEQ,DDP,DDU,Express Delivery |
| Quantité de commande minimum: | 1 Set/Sets |
| transport: | Ocean,Land,Air,Express |
| Hafen: | SHANGHAI,QINGDAO,GUANGZHOU |
Ombre:

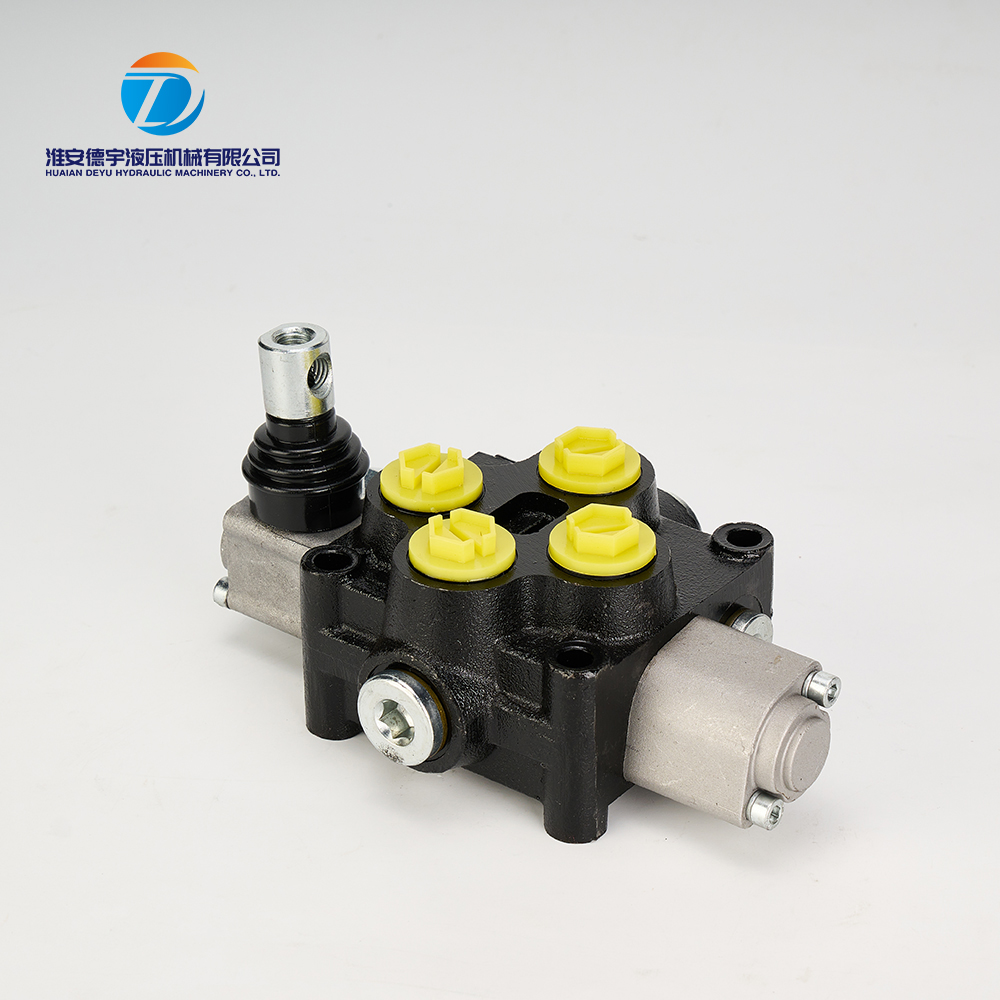

Modèle: ZD102
marque: DEYU
Période De Garantie: 1 année
Service Hors Garantie: Support technique vidéo, Support en ligne
Lieu D'origine: Chine
Système De Service: Support en ligne, Support technique vidéo
Type De Vanne: autre
| Unités de vente | : | Set/Sets |
The file is encrypted. Please fill in the following information to continue accessing it
| Parameter | Specification |
| Model | ZD102 Series |
| Structure Type | Monoblock Manual Multi-way Directional Valve |
| Control Mode | Manual Operation (Spring Return / Ball Detent Optional) |
| Spool Configuration | 1~3 Spools (Customizable Combination) |
| Nominal Flow Rate | 40 L/min (10.57 US gpm) |
| Rated Working Pressure | 16 MPa (2321 psi) |
| Max Working Pressure | 31.5 MPa (4568 psi) |
| Back Pressure | ≤ 1 MPa (145 psi) |
| Spool Function | A/O/Y/P Type (Arbitrary Combination) |
| Body Material | High-Strength Cast Iron |
| Port Connection | Threaded (G3/8" / G1/2" / M18×1.5) |
| Oil Circuit Type | Parallel / Series-Parallel (Optional) |
| Working Temp Range | -20°C ~ +80°C (-4°F ~ +176°F) |
| Application | Forklifts, Small Loaders, Sanitation Vehicles, Agricultural Machinery |
