| Type de paiement: | L/C,T/T,D/P,Paypal,Others |
| Incoterm: | FOB,Express Delivery,CFR,CIF,EXW,FAS,CPT,CIP,DEQ,DDP,DDU,FCA |
| Quantité de commande minimum: | 1 Set/Sets |
| transport: | Ocean,Land,Air,Express |
| Hafen: | S,H,A |
Ombre:

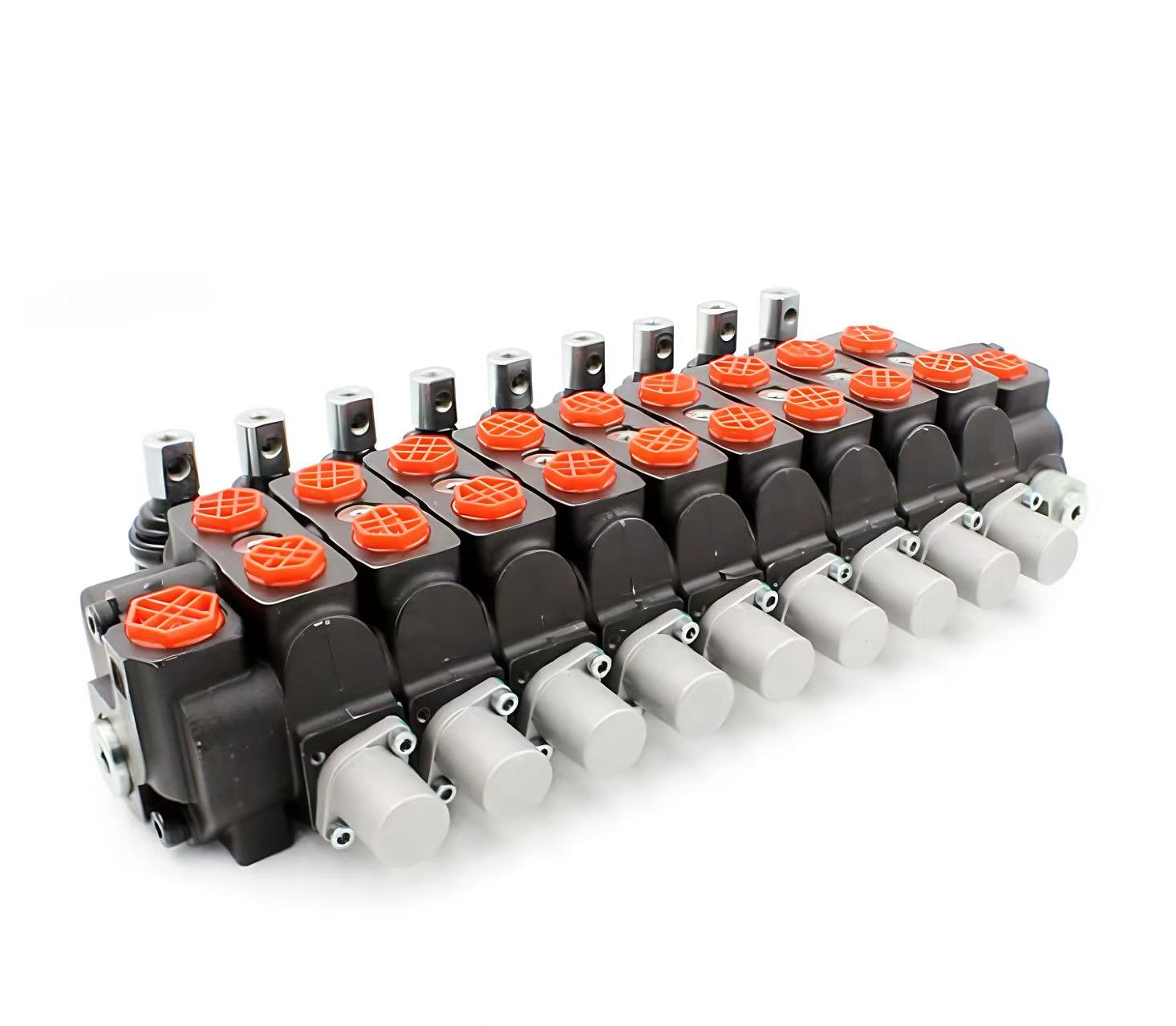

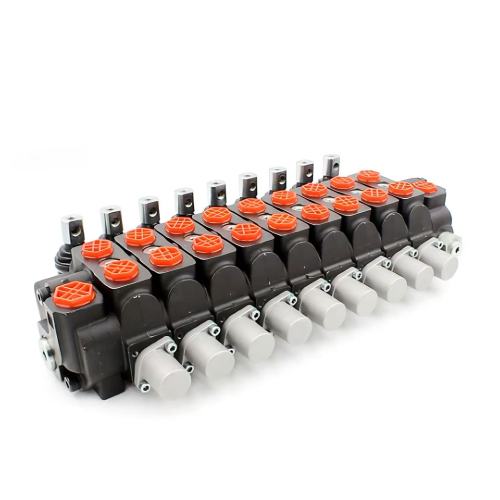

Modèle: SD8
marque: DEYU
| Unités de vente | : | Set/Sets |
The file is encrypted. Please fill in the following information to continue accessing it
| Parameter | Specification |
| Structure Type | Sectional Multi-way Valve |
| Applicable Hydraulic System | Open Center / Closed Center |
| Spool Combination | 1~14 Spools (Customizable) |
| Control Mode | Manual / Electro-hydraulic / Pneumatic / Hydraulic (Optional) |
| Loop Type | Parallel / Tandem / Series-Parallel (Optional) |
| Nominal Flow | 90 L/min (24 US gpm) |
| Max Working Pressure | 315 bar (4600 psi) |
| Max Back Pressure (T Port) | 25 bar (360 psi) |
| Standard Internal Leakage (∆P=100bar) | 3 cm³/min (0.18 in³/min) |
| Working Fluid | Mineral Base Hydraulic Oil |
| Fluid Temperature (NBR Seals) | -20°C ~ 80°C (-4°F ~ 176°F) |
| Fluid Temperature (FPM Seals) | -20°C ~ 100°C (-4°F ~ 212°F) |
| Working Environmental Temperature | -40°C ~ 60°C (-40°F ~ 140°F) |
| Working Viscosity Range | 15 ~ 75 mm²/s (15 ~ 75 cSt) |
| Min Working Viscosity | 12 mm²/s (12 cSt) |
| Max Working Viscosity | 400 mm²/s (400 cSt) |
| Max Contamination Level | ISO 4406 (-/19/16) |
| Spool Diameter | 18 mm (0.71 in) |
| Main Port Thread (P/A/B) | G1/2, 7/8-14(SAE10), M18×1.5 (Optional) |
| Main Port Thread (T/C) | G3/4, 7/8-14(SAE10), M22×1.5 (Optional) |
| Tie Rod Tightening Torque | 30 Nm (22 lb ft) |
| Equipped Valves | Main Relief Valve, Load Check Valve (Standard) |
| Spool Function | A/O/P/Y (Customizable) |
| Application | Construction Machinery, Agricultural Machinery, Material Handling Equipment |
